Ciclopuerto 009

Este producto ya no está disponible.

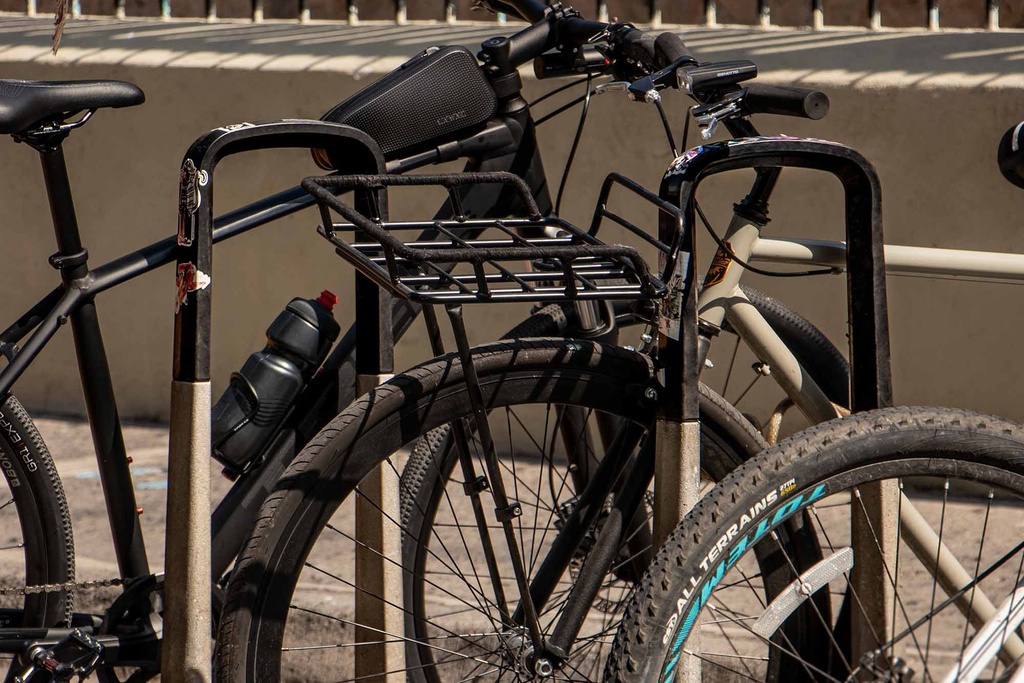

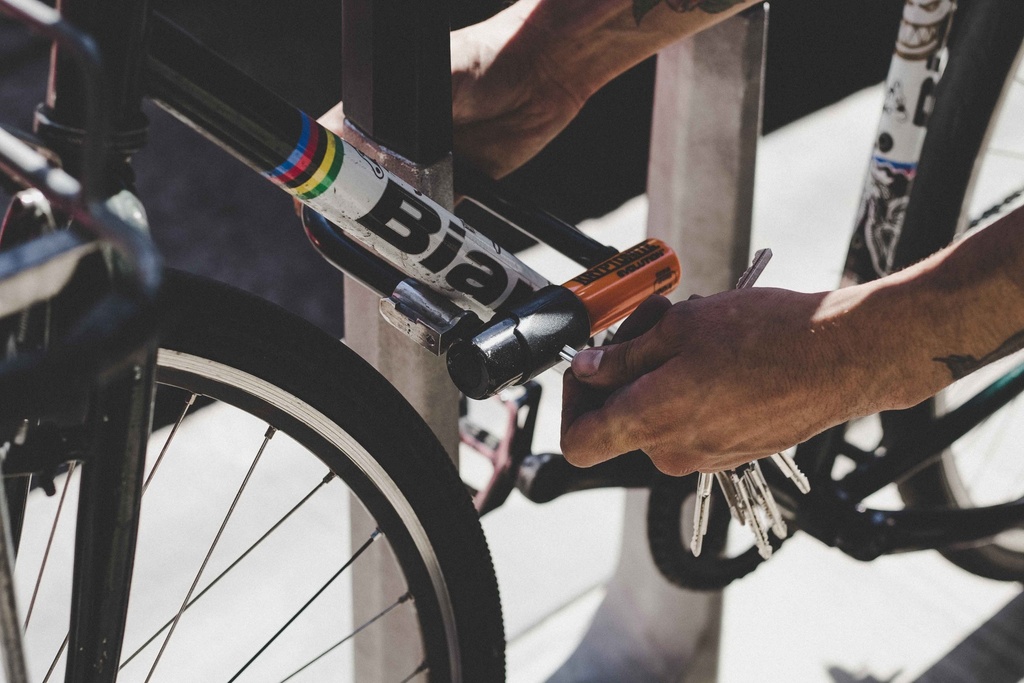

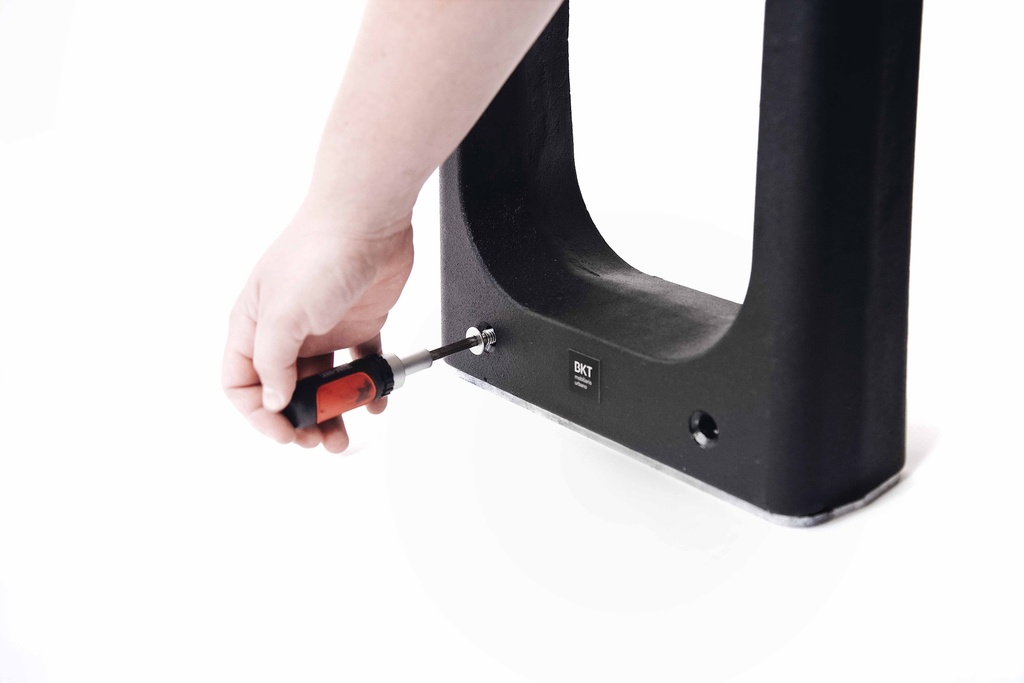

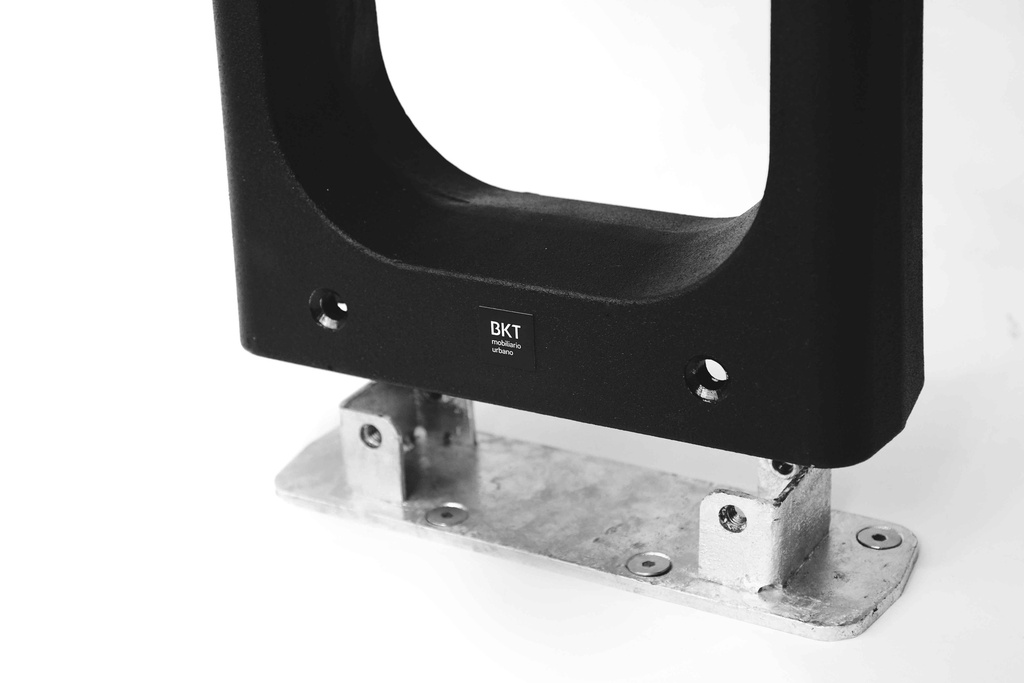

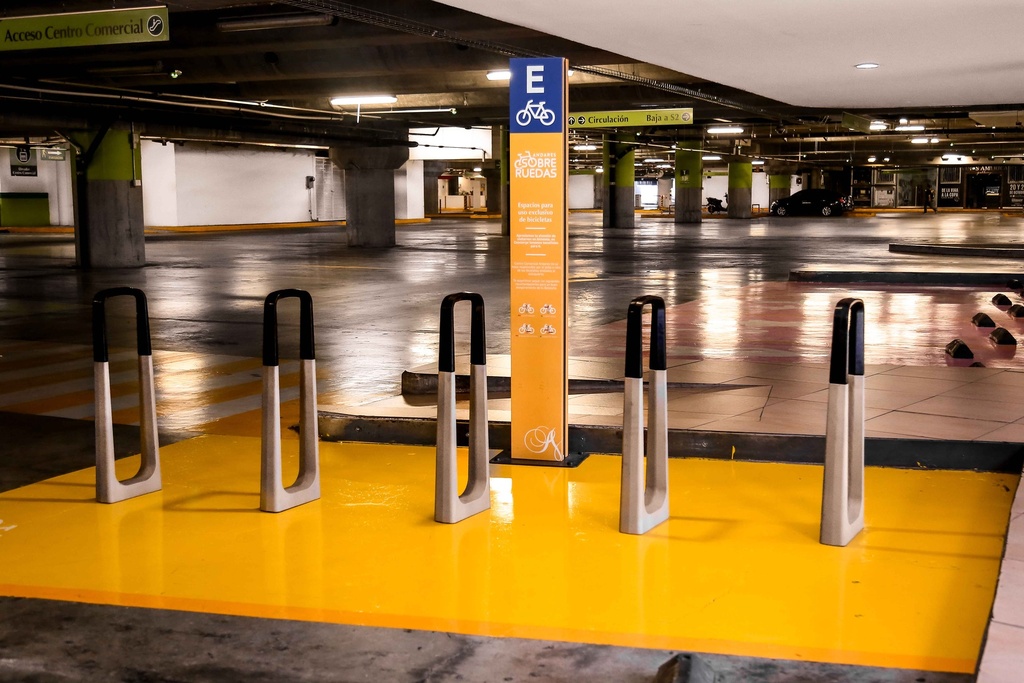

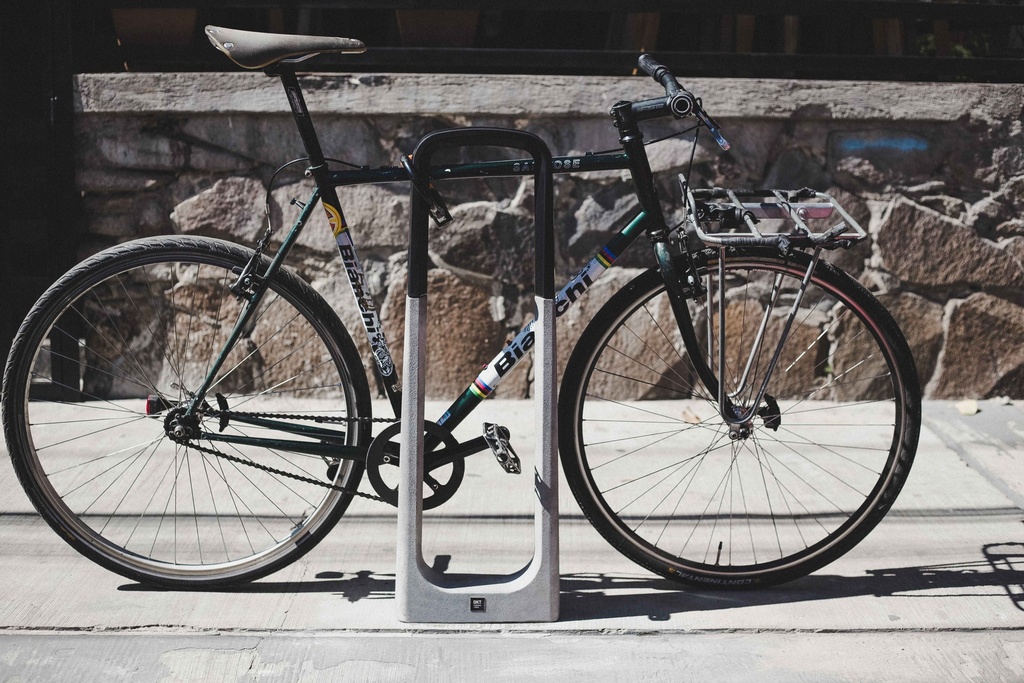

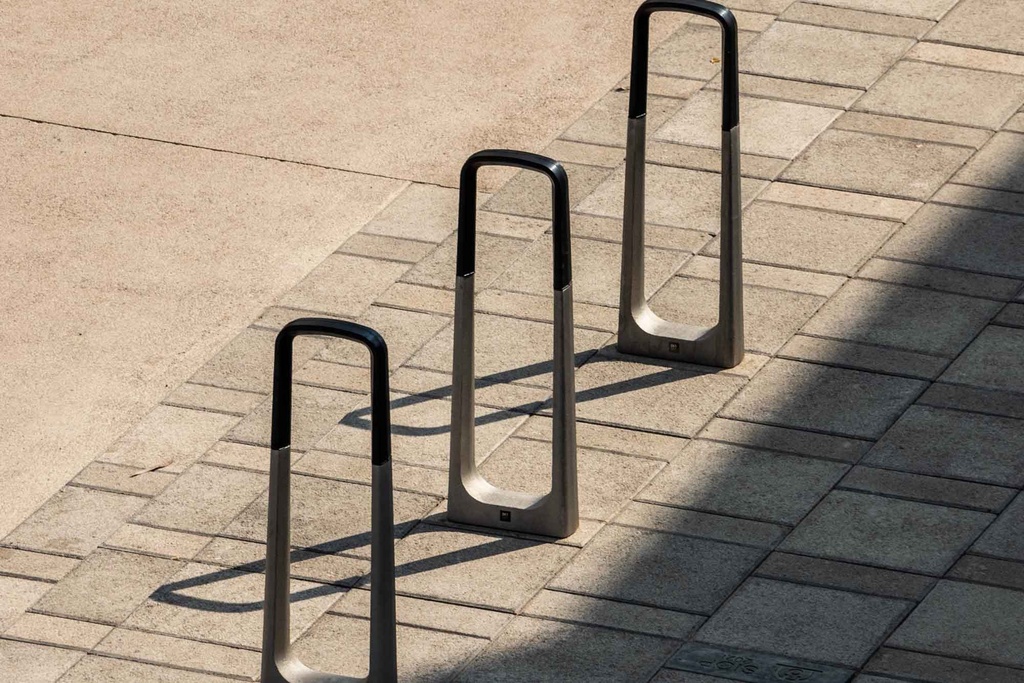

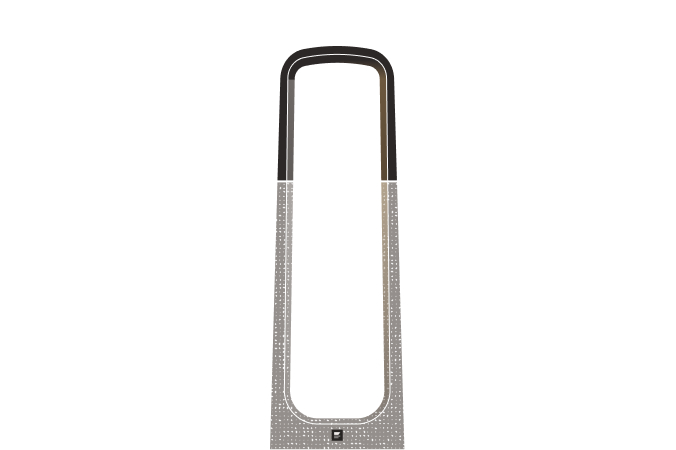

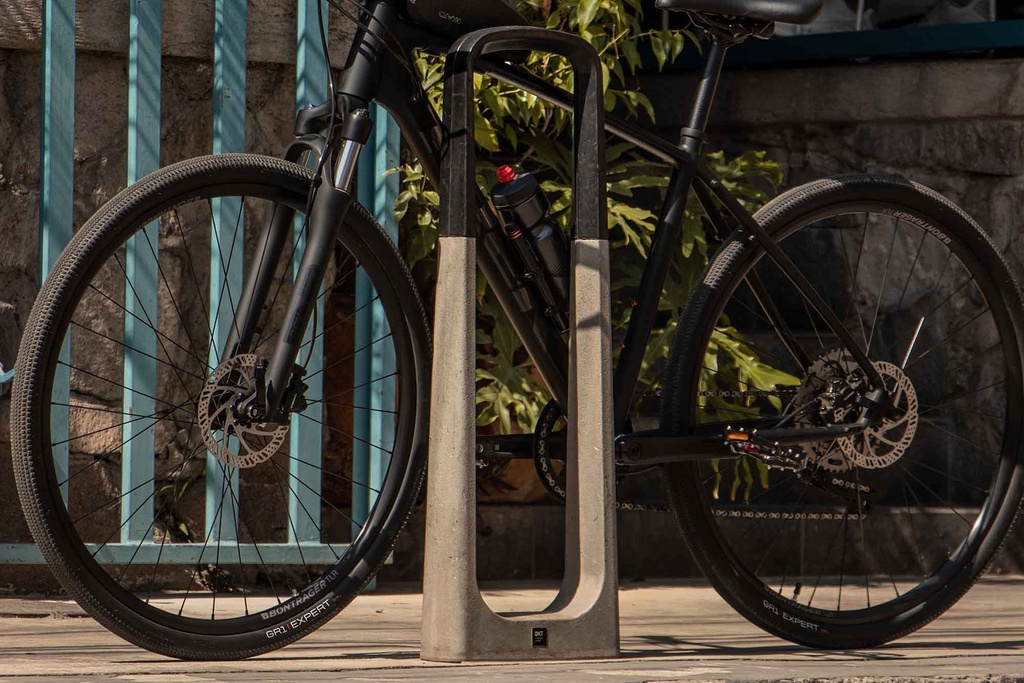

A city that encourages alternative mobility demonstrates this in the quality of its public infrastructure. This bike rack is an example, not just thanks to its function and durability, but also its manufacturing quality, its hidden anchoring, stylized shape, and vulcanized rubber to protect bikes from being scratched. BKT street furniture was founded by urban cyclists. For this reason, the CP-009 is a piece we designed especially for users like ourselves.

Descarga de recursos

Archivo Técnico PDF:
Dibujo Técnico CAD:

Especificaciones

Color	Aluminio natural o Negro
Tipo	Capacidad 2 bicis o Desmontable
Acabados	Aluminio natural

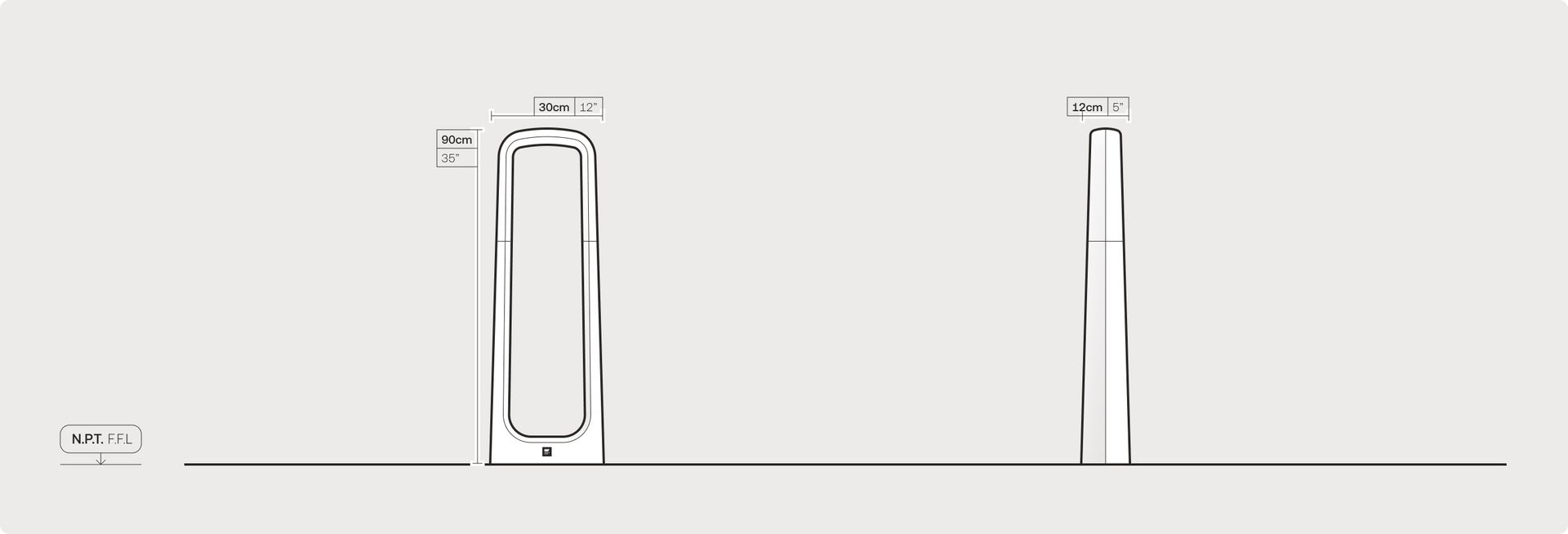

Medidas	90 cm x 30 cm x 12 cm
Fabricación	Fundición de aluminio y vulcanizado de hule
Autor	Diseño industrial No. 52583 En cumplimiento a lo dispuesto por el artículo 409 de la Ley Federal de Protección a la Propiedad Industrial se manifiesta y se hace del conocimiento público que el producto y diseños que a continuación se reproducen se encuentran protegidos ante el Instituto Mexicano de la Propiedad Industrial con el número de registro 52583 MODELO INDUSTRIAL DE ESTACIONAMIENTO PARA BICICLETAS, cuyo titular es RODRIGO VÁZQUEZ ORTEGA; derechos que se encuentran vigentes y surtiendo todos sus efectos legales.

Alternativas sugeridas:

Asiento 009

Baliza 001

Materials

Cast Aluminum

The aluminum structures are made from AlMg3 material, suitable for outdoor use. An stainless steel granule is applied onto the surface of the cast aluminum through blowing, limiting the occurrence of corrosion.

If the customer wants to prevent oxidation, it is advisable to apply a powder coating layer to the surface.

Stainless Steel

By contrast, this material withstands extreme conditions such as high humidity or salinity levels in the atmosphere. Its natural appearance also gives it its own aesthetic virtue.

Carbon Steel

The primary material used for manufacturing most product components is Class 11373 steel (S235JR) or higher quality. Tolerances adhere to ISO 2768-1 standard 'm', and imperfection quality complies with EN 25817 standard 'C'.

Metal Finishes
All our products undergo a series of processes tailored to the material and usage type, aiming to provide the highest quality and durability possible. The combination of these processes represents a unique art perfected over years of experience, made possible only through the right technology and raw materials.

Wood

Plywood

We use treated plywood to protect wood sheets from their natural decomposition, insects, humidity, heat, and other elements. This allows us to guarantee the material for 4 years with minimal maintenance.

Tropical Wood

This type of timber is, by nature, more weather resistant. We mainly use Tropical Wood due to its high resistance to fungi, mold, humidity and also due to its color range.

Glass

Laminated, Tempered, Confortek

For overhead use, 9mm glass with 4mm safety solar film model N1040 SR PS4, medium smoke color, blocks 99% of UV rays, total sunlight reflected 16%, solar rays absorbed 48%, solar energy reflected 49%, visible light transmitted 40%, heat reduction 48%, glare and sunlight reduction 56%, tensile strength 32,000, elongation at break 100%, break strength 2720.

Sustainability

In line with global sustainability efforts, the year 2020 at BKT street furniture marked the beginning of a commitment to sustainability, integrating this component into our vision as an integral element of our practice. We aim to comprehend the impacts our products have throughout their life cycle and understand how our organization influences or is influenced by sustainable development expectations.

Check our Report

In 2019, BKT street furniture measured its environmental impact using the Greenhouse Gas Protocol standards from WRI and WBCSD, demonstrating our commitment to sustainability.
