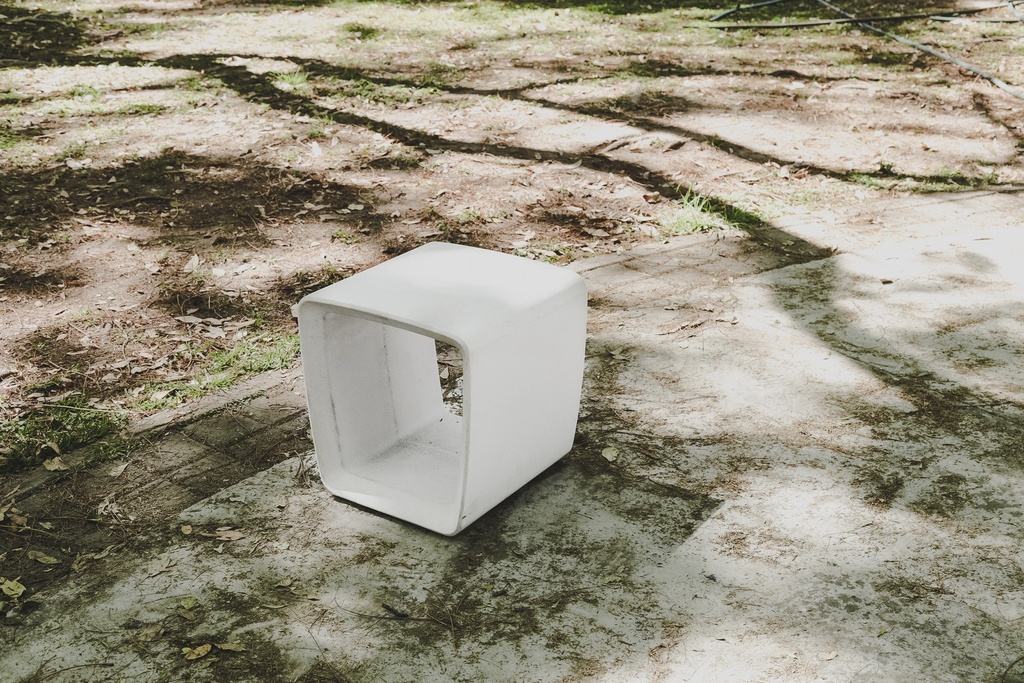

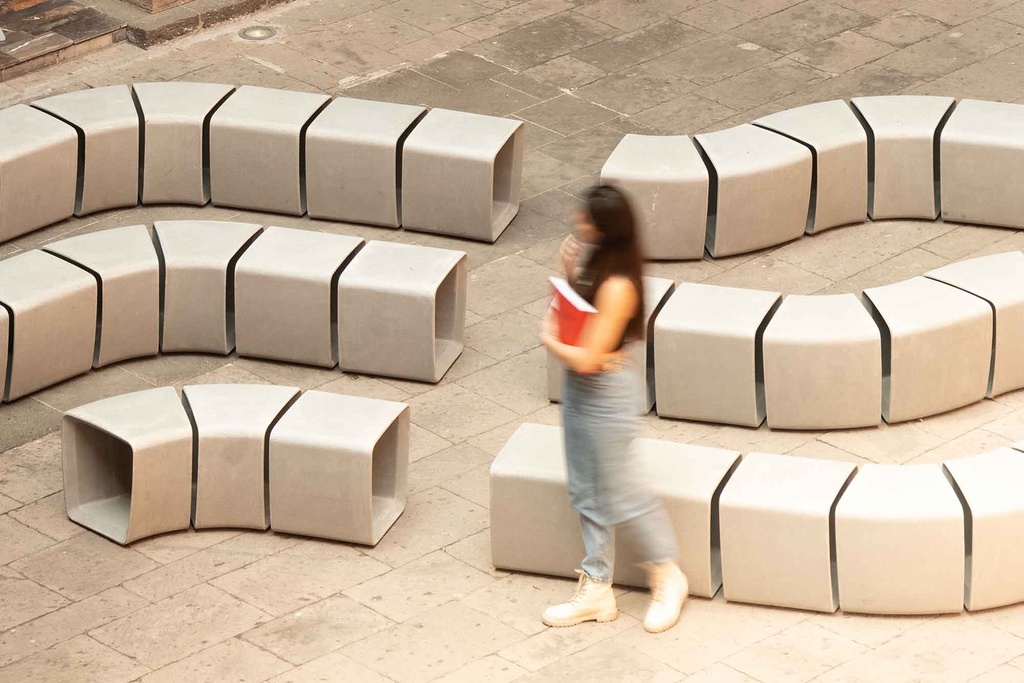

The AS-009 is a modular seating system made of polymer concrete that encourages interaction with public space through its utilitarian configuration, providing any place where it is located with great versatility and visual appeal. The system consists of 2 different modules, one of them straight and the other curved, both with the same angled formal language that allows multiple configurations to be generated in an iconic and unified way from their repetition, from completely straight segments to circular or serpentine geometries that play with any space, including random individual arrangements. At the center of each module, is a void that provides a contrasting visual lightness with the piece's polymer concrete volume. The design and versatility of this seat allow it to blend in with practically any environment, making the experience of social interaction in public spaces more enjoyable.

Descarga de recursos

PDF Technical file:
CAD Technical drawing:

Specifications

Color	White or Gray BKT 3 or Green or Turquoise or Blue
Fixation	Fixed or Detachable
Type	Straight or Curved
Material	Polymer concrete
Finishes	smooth finish
Dimensions	41 cm x 39 cm x 44 cm
Manufacturing	Polymeric concrete
Author	Industrial design No. 56466 and 56467 In compliance with the provisions of article 409 of the Federal Property Protection Law Industrail, it is stated and made public knowledge that the product and designs reproduced below are protected before the Institute Mexican Industrial Property with registration number 56466 INDUSTRIAL MODEL OF AREA DELIMITING ELEMENT, whose owner is RODRIGO VÁZQUEZ ORTEGA; rights that are in force and having all their legal effects.

Suggested alternatives:

Bike rack 009

Lane defender 001

Seat 010

Materials

Cast Aluminum

The aluminum structures are made from AlMg3 material, suitable for outdoor use. An stainless steel granule is applied onto the surface of the cast aluminum through blowing, limiting the occurrence of corrosion.

If the customer wants to prevent oxidation, it is advisable to apply a powder coating layer to the surface.

Stainless Steel

By contrast, this material withstands extreme conditions such as high humidity or salinity levels in the atmosphere. Its natural appearance also gives it its own aesthetic virtue.

Carbon Steel

The primary material used for manufacturing most product components is Class 11373 steel (S235JR) or higher quality. Tolerances adhere to ISO 2768-1 standard 'm', and imperfection quality complies with EN 25817 standard 'C'.

Metal Finishes
All our products undergo a series of processes tailored to the material and usage type, aiming to provide the highest quality and durability possible. The combination of these processes represents a unique art perfected over years of experience, made possible only through the right technology and raw materials.

Wood

Plywood

We use treated plywood to protect wood sheets from their natural decomposition, insects, humidity, heat, and other elements. This allows us to guarantee the material for 4 years with minimal maintenance.

Tropical Wood

This type of timber is, by nature, more weather resistant. We mainly use Tropical Wood due to its high resistance to fungi, mold, humidity and also due to its color range.

Glass

Laminated, Tempered, Confortek

For overhead use, 9mm glass with 4mm safety solar film model N1040 SR PS4, medium smoke color, blocks 99% of UV rays, total sunlight reflected 16%, solar rays absorbed 48%, solar energy reflected 49%, visible light transmitted 40%, heat reduction 48%, glare and sunlight reduction 56%, tensile strength 32,000, elongation at break 100%, break strength 2720.

Sustainability

In line with global sustainability efforts, the year 2020 at BKT street furniture marked the beginning of a commitment to sustainability, integrating this component into our vision as an integral element of our practice. We aim to comprehend the impacts our products have throughout their life cycle and understand how our organization influences or is influenced by sustainable development expectations.

Check our Report

In 2019, BKT street furniture measured its environmental impact using the Greenhouse Gas Protocol standards from WRI and WBCSD, demonstrating our commitment to sustainability.

Products

Projects

Editorial

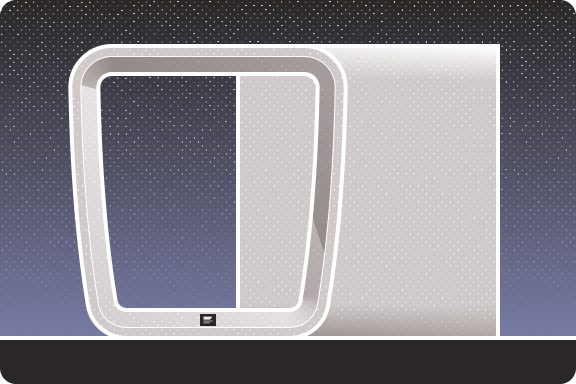

Seat 009
